| LOC. | PART NO. | DESCRIPTION | OEM PART # | LIST |
| 5 | 1302100 | Hinge Pin, 1-3/16" DIA x 9-1/2" | 81100031 | 17.10 |
| 6 | 1302105 | Trip Edge Pin, 1-3/16" x 4-3/4" | 81100032 | 9.10 |
| 7 | 1302110 | Trip Edge Pin, 1-3/16" x 2-13/16" | 81100033 | 12.30 |
| 8 | 1304100 | Cylinder, 1-1/2"x10" (Lift and Angle) | 81700020 | 132.80 |
| N.I. | 1304105 | Hose, 1/4"NPT Ends x 34" | 816000095034 | 14.10 |
| N.I. | 1304110 | Hose, 1/4"NPT Ends x 40" | 816000095040 | 14.60 |
| N.l. | 1304115 | Hose, 1/4"NPT Ends x 45" | 816000095045 | 15.50 |
| N.I. | 1304120 | Hose, 1/4"NPT End x 56" | 816000095056 | 16.30 |
| N.I. | 1304125 | Hose, 1/4'NPT Ends x 64" | 816000095064 | 17.90 |
| 1 | 1303100 | Anti-wear Shoe Assembly | 81100011 | 47.90 |
| 2 | 1308006 | Blade Guide Kit (pr.) | 811000095 | 13.70 |
| 3A | 1302115 | RH Torsion Spring | 811000163 | 21.10 |
| 3B | 1502120 | LH Torsion Spring | 811000162 | 21.10 |
| 4 | 1302125 | Spring Sleeve, 13-1/2" | 811000168 | 9.25 |
| 9 | 1302130 | Dust Plug | 81700026 | 5.15 |
| 10 | 1302135 | Lift Cylinder Pin, 1"x3-1/16" | 81900016 | 9.30 |
| 11 | 1302140 | Cylinder Pin, 1"x4" | 81900011 | 17.20 |
| 12 | 1302145 | Lift Cylinder Pin, 1"x4-7/16" | 81900012 | 10.55 |
| N.I. | 1302150 | Release Hook | 81900013 | 11.40 |
| 13 | 1302155 | Cylinder Pin, 1"x6" | 81900015 | 13.25 |
| 14 | 1502160 | Spring, Double Torsion | 8110005 | 23.90 |
| 15 | 1302015 | Trip Spring, Compact Blade | 12978 | 25.70 |
| N.I. | 1304025 | Quick Disconnect | 875200100 | 13.40 |
| N.I. | 1304135 | 1/4", 90° Male Elbow | 875210544 | 5.70 |
| N.I. | 1304140 | 1/4"NPT Male/45° Female Swivel | 875220344 | 5.90 |
| N.I. | 1304145 | 1/4"NPT Male/90° Male Swivel | 875220244 | 5.90 |

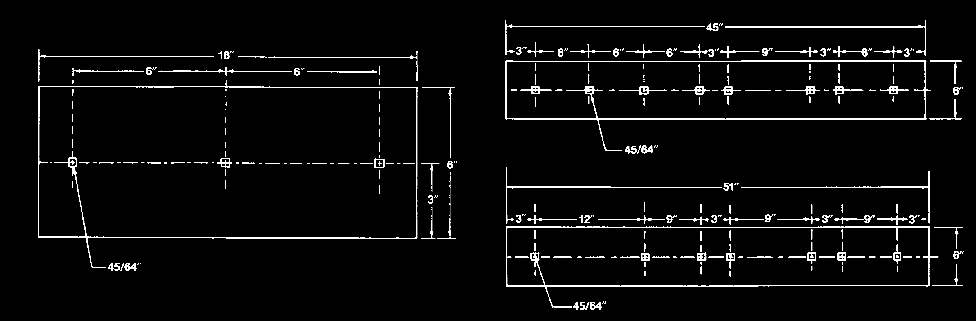

| Replacement Cutting Edges | ||||
| 1301100 | 1/2" x 6" x 18" | 811000233 | 28.70 | |
| 1301105 | 1/2" x 6" x 45" | 801100019 | 61.50 | |
| 1301110 | 1/2" x 6" x 51" | 801100020 | 69.25 | |
| 1301065 | (12) 5/8" Grade 5 Bolts (12) Self Locking Nuts | 8318 | 16.90 | |
|
|

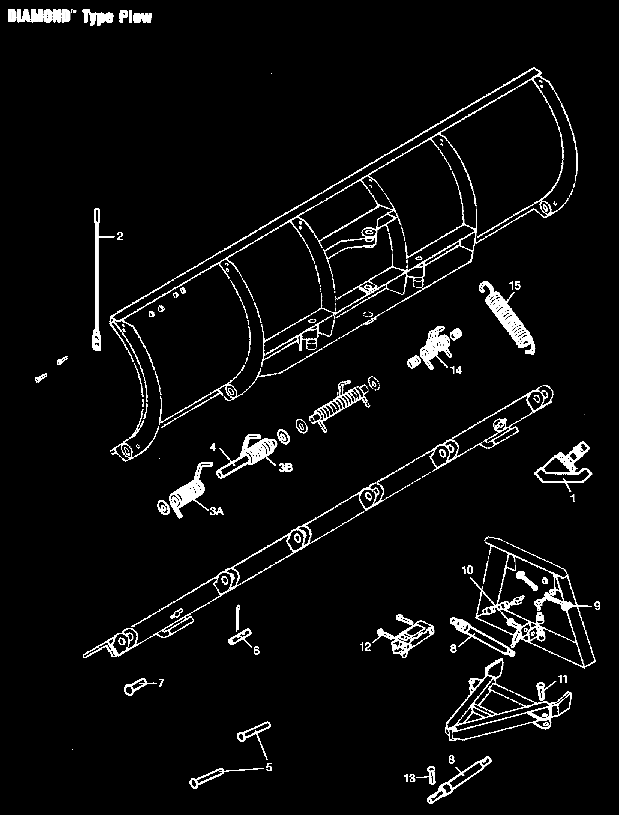

Click Here For Diamond Type Plow Diagram
