ATTS - S.A.M. PARTS

Steel Replacement Cutting Edge Info

C-1090 Steel - Brinnel Hardness Range 250-350

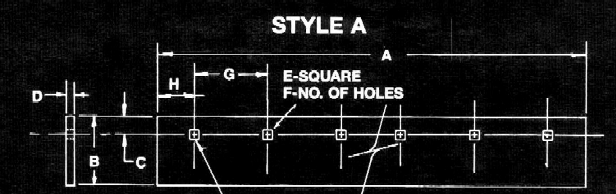

STYLE A - REPLACEMENT STEEL CUTTING EDGE

PART NO.	OEM PART #	A	B	C	D	E	F	G	H	LBS/BLADE
1301300	5532	90	6	1	3/8	17/32	8	12 7/16	1 7/16	57 lbs.
1301305	5533	96	6	1	1/2	19/32	8	12 7/16	4 15/32	61 lbs.
1301005	9100	78	6	2	3/8	17/32	6	15	1 1/2	49 lbs.
1301010	9130	72	6	1	3/8	17/32	7	10 3/8	4 7/8	46 lbs.
1301015	9131	78	6	1	3/8	17/32	8	10 3/8	2 11/16	49 lbs.
1301020	9132	84	6	1	3/8	17/32	7	12 7/16	4 11/16	53 lbs.
1301035	9133	96	6	1	1/2	17/32	8	12 7/16	4 15/32	81 lbs.
1301040	9134	102	6	1	1/2	17/32	9	12 7/16	1 1/4	86 lbs.
1301025	9796	90	6	1	3/8	17/32	8	12 7/16	1 15/32	57 lbs.
1301030	09796HD	90	6	1	1/2	17/32	8	12 7/16	1 15/32	57 lbs.
1301210	49070	84	6	1	3/8	19/32	8	11 1/4	2 5/8	54 lbs.
1301220	49080	96	6	1	3/8	19/32	8	13	2 1/2	61 lbs.
1301245	58811	72	6	3	3/8	9/16	7	11 1/4	2 1/4	46 lbs.
1301255	58813	84	6	3	3/8	9/16	8	11 1/4	2 5/8	53 lbs.
1301265	58815	96	6	3	1/2	9/16	8	13	2 1/2	81 lbs.
1301235	49089	96	6	1	1/2	19/32	8	13	2 1/2	81 lbs.

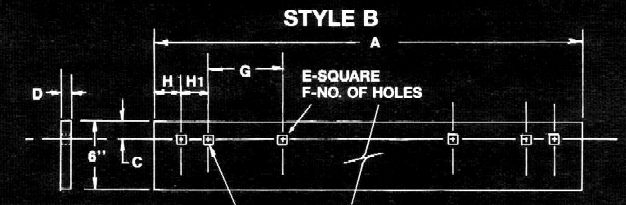

STYLE B - REPLACEMENT STEEL CUTTING EDGE

PART NO.	OEM PART #	A	C	O	E	F	G	H	HI	LBS/BLADE
1301315	3507	120	1 1/2	1/2	45/64	12	12	3	3	101 lbs.
1301310	5534	108	1 1/4	1/2	45/64	11	12	3	3	91 lbs.
1301050	7235	120	1 1/4	1/2	45/64	12	12	3	3	101 lbs.
1301045	7259	108	1 1/4	1/2	45/64	11	12	3	3	91 lbs.
1301250	49066	78	1	3/8	19/32	8	11 1/4	2 5/8	8 1/4	49 lbs.
1301205	49068	78	1	3/8	t9/32	8	11 1/4	2 5/8	8 1/4	49 lbs.
1301215	49076	90	1	3/8	19/32	8	11 1/4	2 6/8	14 1/4	57 lbs.
1301225	49086	102	1	1/2	19/32	8	13	2 1/2	16	86 lbs.
1301250	58812	78	3	3/8	9/16	8	11 1/4	2 5/8	8 1/4	49 lbs.
1301260	58814	90	3	3/8	9/16	8	11 1/4	2 5/8	14 1/4	57 lbs.
1301270	58816	102	3	1/2	9/16	8	13	2 1/2	16	87 lbs.
1301275	58817	108	1 1/2	1/2	11/16	11	12	3	3	92 lbs.
1301280	58818	120	1 1/2	1/2	45/64	12	12	3	3	101 lbs.
1301230	49088	90	1	1/2	19/32	8	11 1/4	2 5/8	14 1/2	76 lbs.
1301240	49251	108	1 1/2	1/2	19/32	10	16	2 1/2	3	92 lbs.
