Maximum Deflection

DOWNLOADS

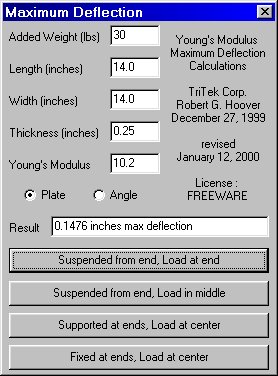

This utility computes the deflection of a plate using Young's Modulus constant.

To use, enter the deflecting object weight, the length width and thickness of the plate, and the Young's Modulus of the material being deflected. Then choose 'plate' for a solid plate or 'angle' for angle extrusion. Finally, click on one of the four configurations to display the result.

click here if download does not begin automatically
