Features include;
 Fully automated system, with PLC controls (Seimens S5) user friendly, with up to 10 different preset parameters for various products, which allows quick and efficient process change.

Simple operation by digital setting and display of temperature and pasteurization time.

Automatic cut-off at end of cycle with optical and acoustic signals.

The filled product is packed into plastic cases and simply placed in the pasteurizer either manually or by forklift on pallets.

All Stainless Steel Construction

Technical Specification for

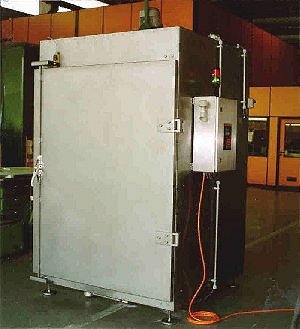

NEW STAINLESS STEEL CABINET PASTEURIZER;
Overall dimensions    - 1410mm Wide x 1480mm Depth x 2600mm High
                        (55-9/16”W x 58-5/16”D x 102-3/8”H)
Door Opening          - 1330mm Wide x 1725mm High
                        (52-3/8”W x 67-15/16”H)
Pallet Size           - 1000mm Wide x 1200mm,
                        (39-3/8” Wide x 47-1/4”)
Height of product     - 1570mm (61-13/16”)
Wall Type             - All Walls are Double Skin Insulated
Steam Consumption     - 50kg per pallet (Approx.),
                         Low pressure  0.2Bar
Steam Connection      - 32mm BSP
Working Voltage       - 400V - 50 Hz
Control Voltage       - 230V - 50 HZ
Supply                - 3 Core, Neutral + PE
                        5 x 2.5mm
                        16amp
Steam Circulation     - Via Fan Mounted In Roof 2.2kw
Condensation          - Removed Via Pressureless Outlet in Floor
                        to Drain.
Mounted on 4 adjustable feet.
Door, electrical panel, and controls can be mounted either hand.

Complete with;
 Operating Instructions
 Electrical Drawings
 Spare Parts List
 c e Marked
